Au147, Au L3-edge (icosahedral model))


Cite as: Timoshenko and Frenkel, Catal. Today 280 (2017) 274

Download all input files
Download all output files

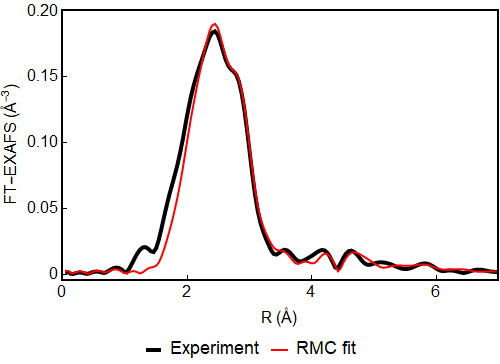

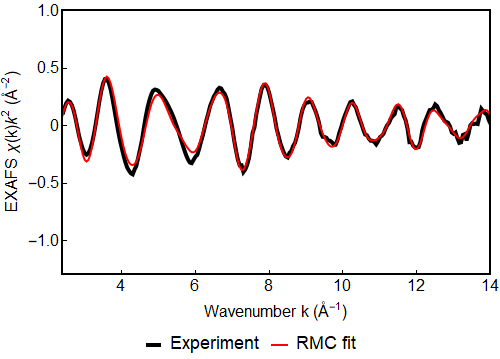

Comparison of experimental data with RMC fit results

Residual = 0.175 (R-factor = 0.031 )

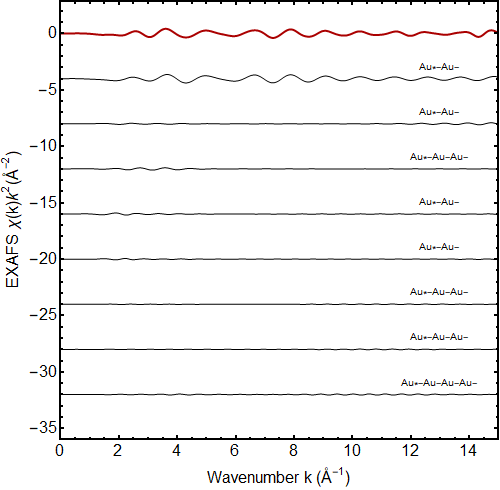

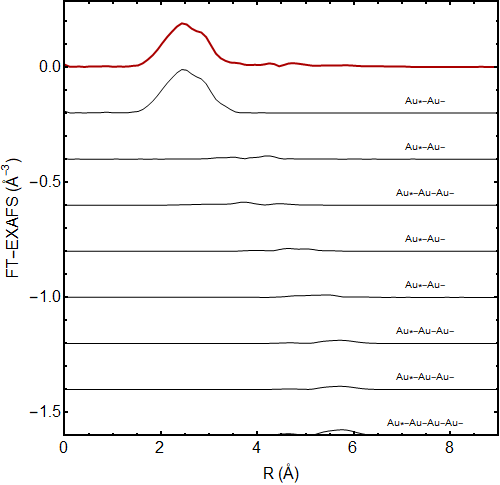

Contributions of the most important paths

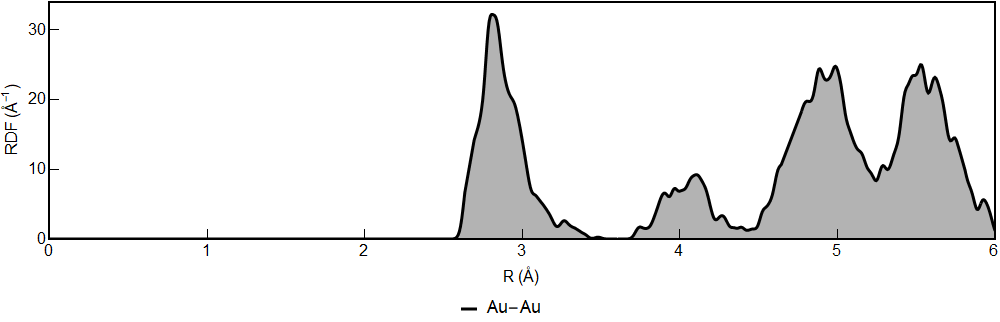

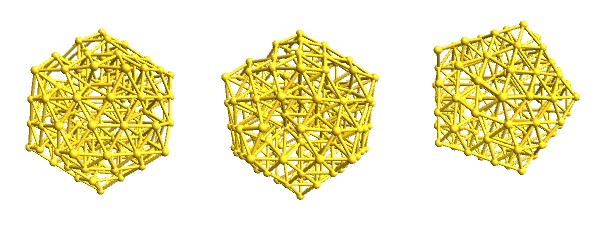

Structure


Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Au-Au 3.76 2.808 0.0112
Au-Au 5.71 2.924 0.0238
Au-Au 3.27 4.054 0.023
Au-Au 4.49 4.757 0.0206
Au-Au 7.35 5.016 0.0256
Au-Au 8.57 5.538 0.0212
Au-Au 2.04 5.844 0.0252
