Cu foil, Cu K-edge, T = 150 K


Cite as: Timoshenko et al, Acta Mater. 129 (2017) 61

Download all input files
Download all output files

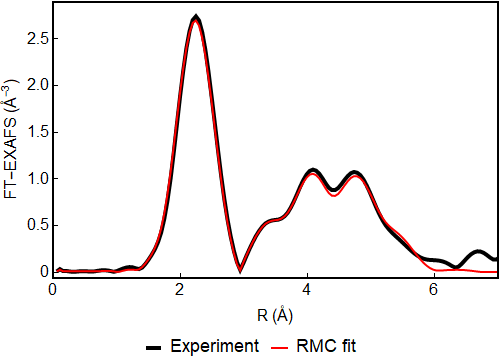

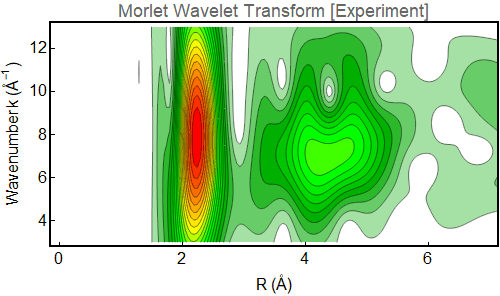

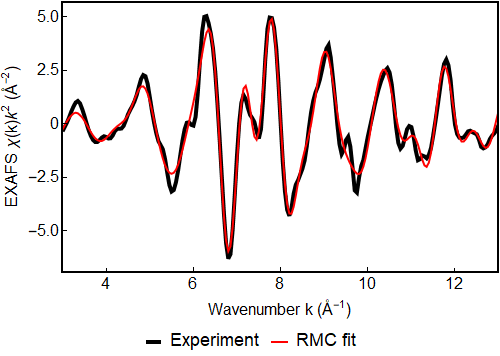

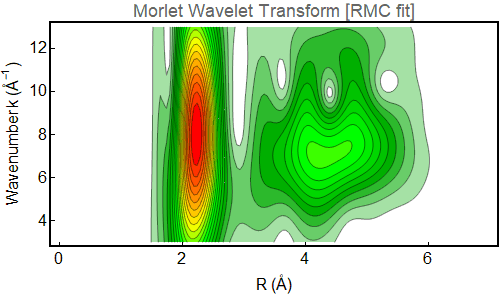

Comparison of experimental data with RMC fit results

Residual = 0.081 (R-factor = 0.007 )

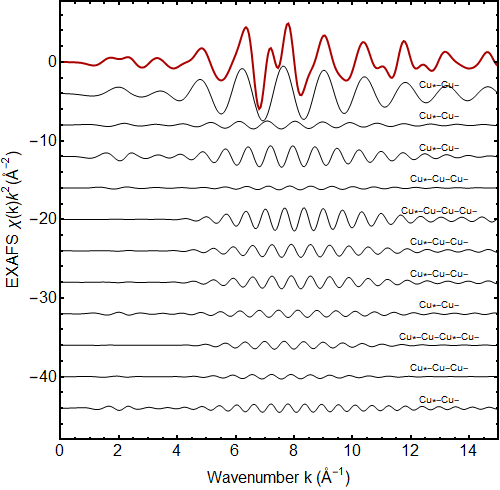

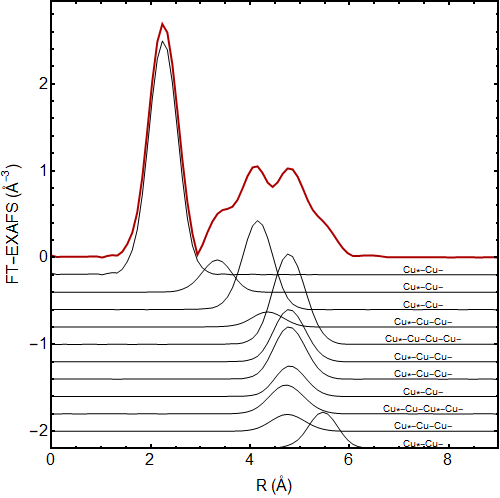

Contributions of the most important paths

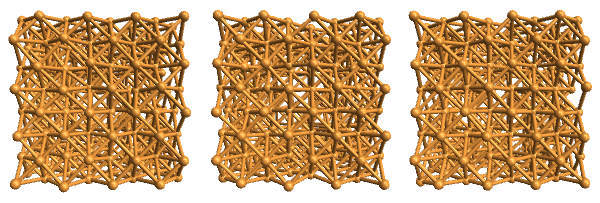

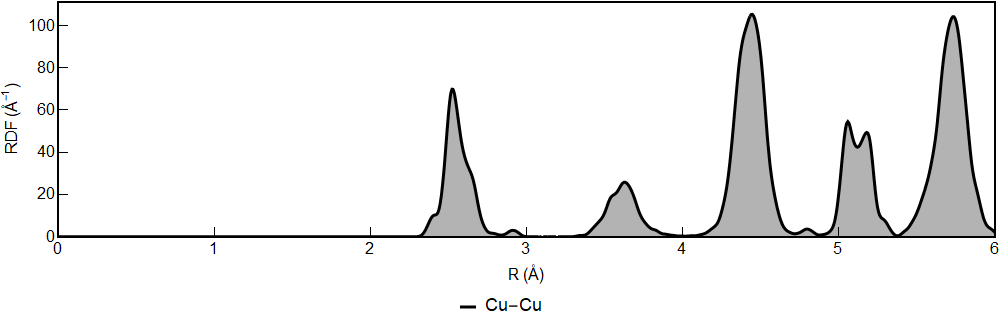

Structure


""
Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Cu-Cu 12. 2.56 0.0087
Cu-Cu 6. 3.618 0.0103
Cu-Cu 24. 4.429 0.0082
Cu-Cu 12. 5.114 0.0085
Cu-Cu 24. 5.717 0.0096
