Cu foil, Cu K-edge, T = 550 K

Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727
Download all input files
Download all output files

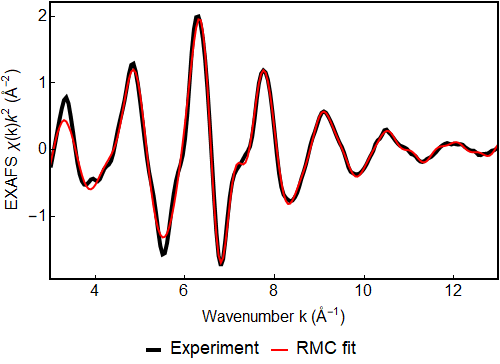

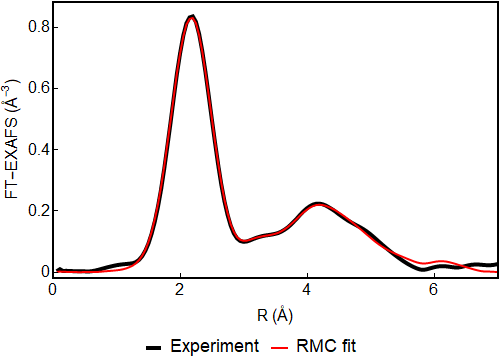

Comparison of experimental data with RMC fit results

Residual = 0.072 (R-factor = 0.005 )

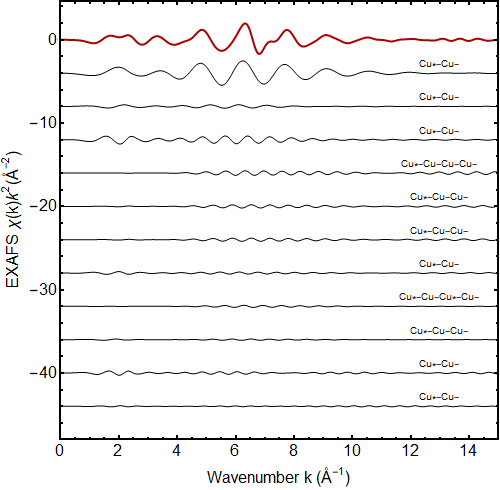

Contributions of the most important paths

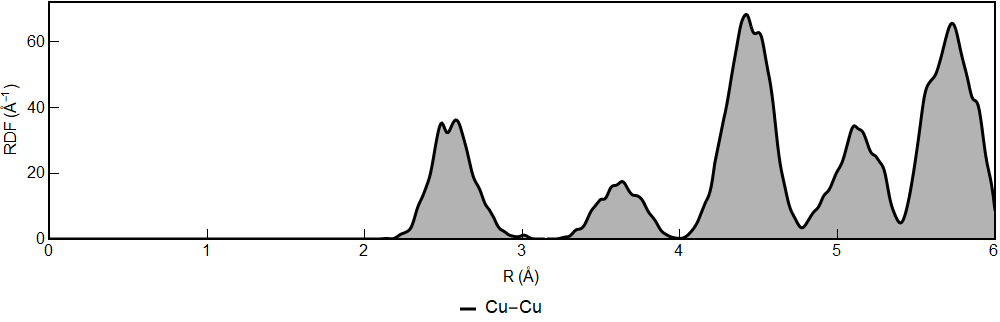

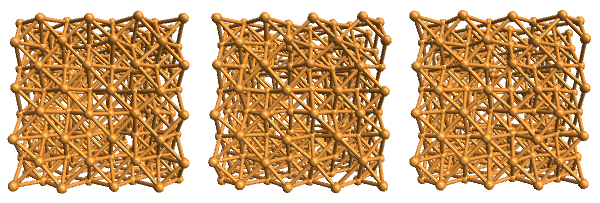

Structure

""
Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Cu-Cu 12. 2.562 0.0181
Cu-Cu 6. 3.619 0.0177
Cu-Cu 24. 4.431 0.0177
Cu-Cu 12. 5.116 0.0192
Cu-Cu 24. 5.719 0.0182
