Ga2O3, Ga K-edge
Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727

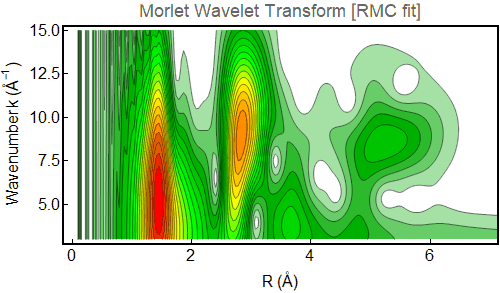

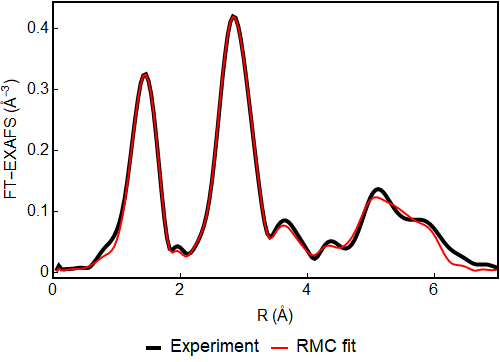

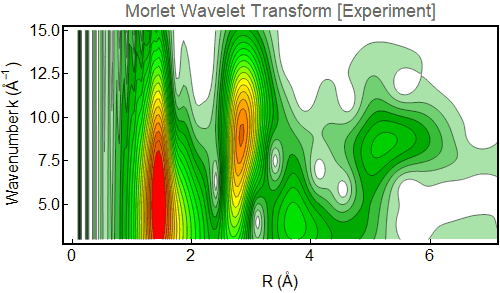

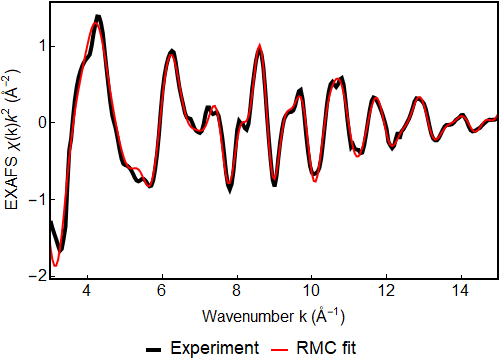

Comparison of experimental data with RMC fit results
Residual = 0.121 (R-factor = 0.015 )

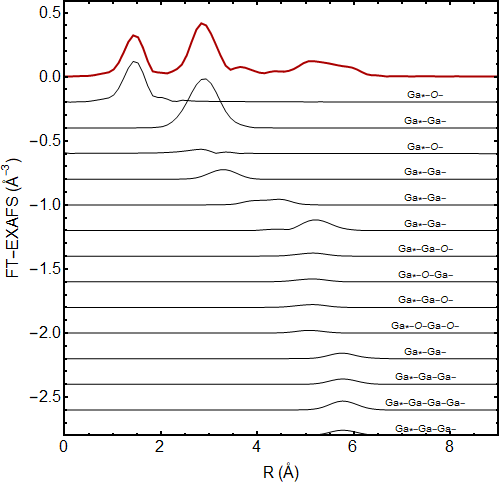

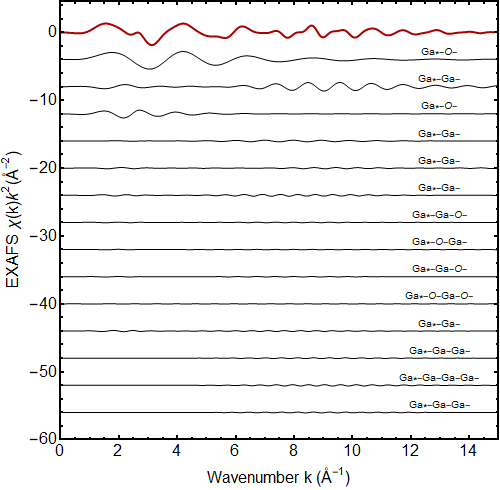

Contributions of the most important paths

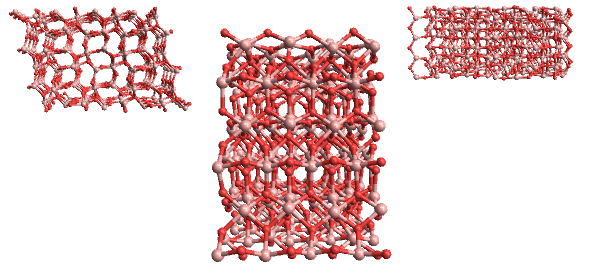

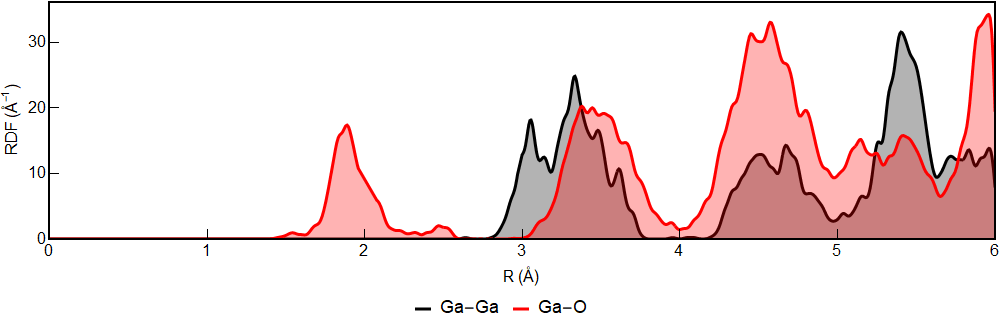

Structure
| Coord.shell | Coord. number | Mean R (Å) | MSRD (Å-2) |
| Ga-O | 2. | 1.859 | 0.0125 |
| Ga-O | 2.5 | 1.919 | 0.0247 |
| Ga-O | 1.5 | 2.102 | 0.0454 |
| Ga-Ga | 3. | 3.086 | 0.0212 |
| Ga-Ga | 5. | 3.287 | 0.0178 |
| Ga-O | 1.5 | 3.299 | 0.0119 |
| Ga-O | 3. | 3.377 | 0.0224 |
| Ga-Ga | 2. | 3.489 | 0.0167 |
| Ga-O | 6. | 3.525 | 0.0238 |
| Ga-Ga | 1. | 3.562 | 0.0065 |
| Ga-O | 4.5 | 3.609 | 0.0267 |
| Ga-O | 1.5 | 4.255 | 0.0154 |
| Ga-O | 3. | 4.367 | 0.0191 |
| Ga-Ga | 1. | 4.402 | 0.0055 |
| Ga-O | 7. | 4.476 | 0.0218 |
| Ga-Ga | 2. | 4.489 | 0.0163 |
| Ga-O | 8. | 4.598 | 0.0246 |
| Ga-Ga | 2.5 | 4.661 | 0.0133 |
| Ga-O | 7. | 4.685 | 0.0277 |
| Ga-O | 2. | 4.868 | 0.0328 |
| Ga-Ga | 1.5 | 4.894 | 0.027 |
| Ga-O | 1. | 5.123 | 0.0118 |
| Ga-O | 2.5 | 5.171 | 0.0136 |
| Ga-O | 2. | 5.26 | 0.0198 |
| Ga-Ga | 3. | 5.36 | 0.0185 |
| Ga-Ga | 8. | 5.429 | 0.0206 |
| Ga-O | 3. | 5.45 | 0.014 |
| Ga-O | 2.5 | 5.491 | 0.0184 |
| Ga-Ga | 3. | 5.52 | 0.0205 |
| Ga-Ga | 3. | 5.79 | 0.0206 |
| Ga-O | 6. | 5.915 | 0.017 |
| Ga-O | 8. | 5.953 | 0.0215 |
| Ga-Ga | 1. | 6.006 | 0.008 |
