Pt foil, Pt L3-edge

Cite as: Timoshenko et al, J. Phys. Chem. Lett. 8 (2017) 5091
Download all input files
Download all output files

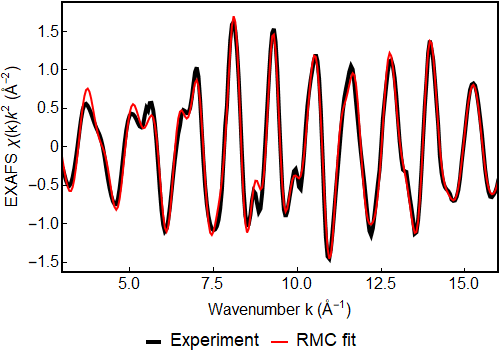

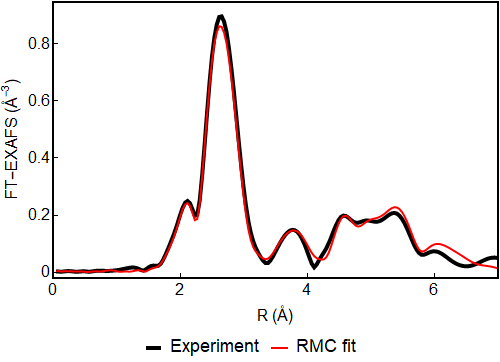

Comparison of experimental data with RMC fit results

Residual = 0.108 (R-factor = 0.012 )

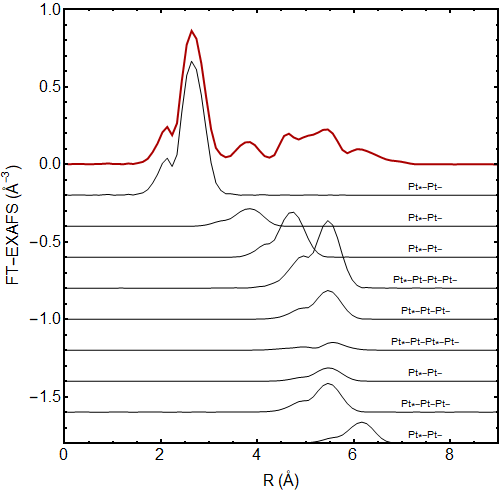

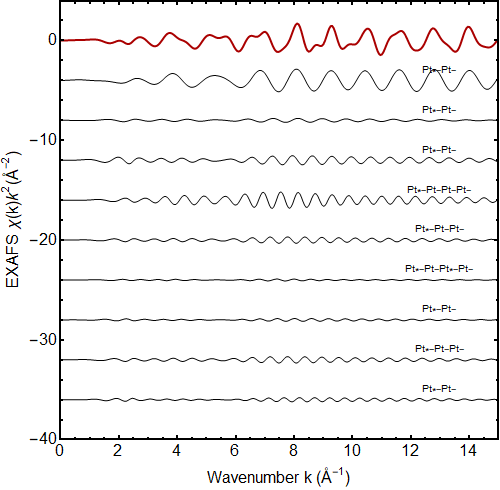

Contributions of the most important paths

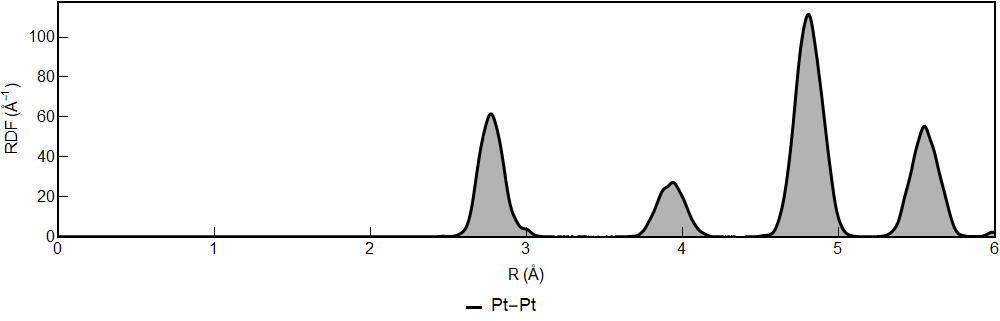

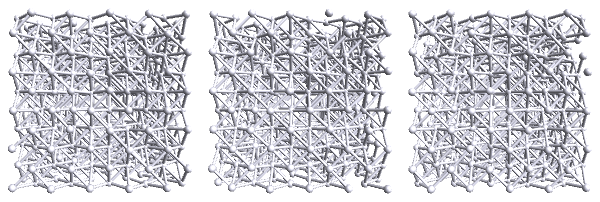

Structure

Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Pt-Pt 12. 2.777 0.0062
Pt-Pt 6. 3.926 0.0068
Pt-Pt 24. 4.808 0.0069
Pt-Pt 12. 5.551 0.007
