CoWO4 nanoparticles, Co K-edge
Cite as: Timoshenko et al, Phys. Status Solidi A 212 (2015) 265

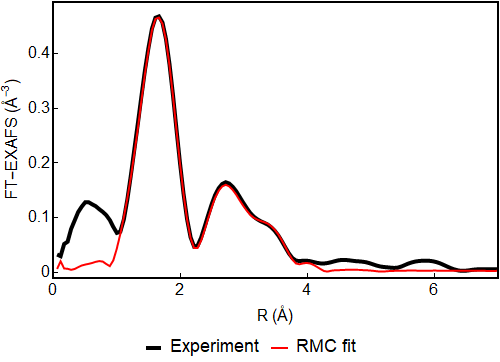

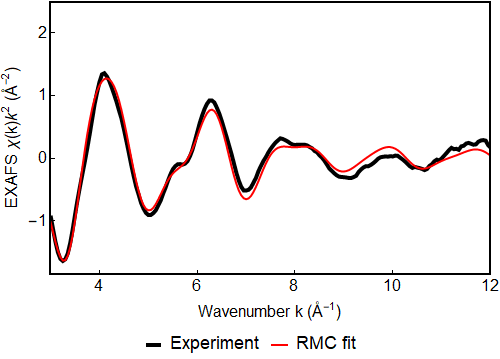

Comparison of experimental data with RMC fit results
Residual = 0.058 (R-factor = 0.003 )

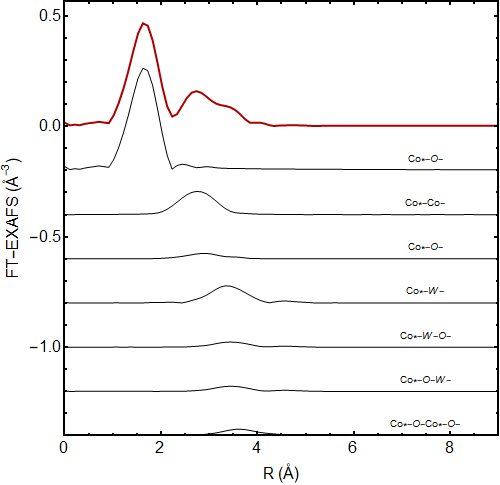

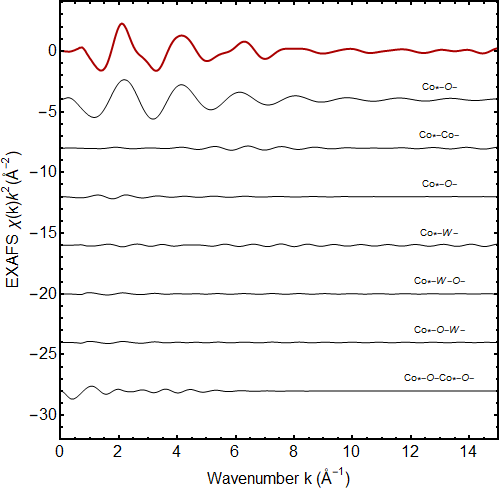

Contributions of the most important paths

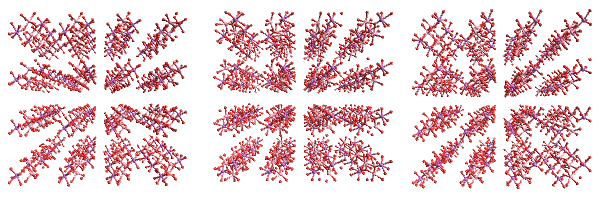

Structure
| Coord.shell | Coord. number | Mean R (Å) | MSRD (Å-2) |
| Co-O | 6. | 2.112 | 0.0327 |
| Co-Co | 1. | 3.103 | 0.0435 |
| Co-O | 1. | 3.209 | 0.0313 |
| Co-O | 1. | 3.419 | 0.0207 |
| Co-W | 1. | 3.504 | 0.0186 |
| Co-W | 1. | 3.597 | 0.0149 |
| Co-O | 3. | 3.751 | 0.0284 |
| Co-O | 1. | 3.965 | 0.0203 |
| Co-O | 1. | 4.417 | 0.0207 |
| Co-O | 2. | 4.676 | 0.0265 |
| Co-O | 3. | 4.742 | 0.0264 |
| Co-O | 2. | 4.837 | 0.0233 |
| Co-O | 1. | 5.382 | 0.0206 |
| Co-O | 1. | 5.642 | 0.0188 |
| Co-O | 0.75 | 5.821 | 0.0294 |
