Cu foil, Cu K-edge, T = 10 K

Cite as: Timoshenko et al, Acta Mater. 129 (2017) 61
Download all input files
Download all output files

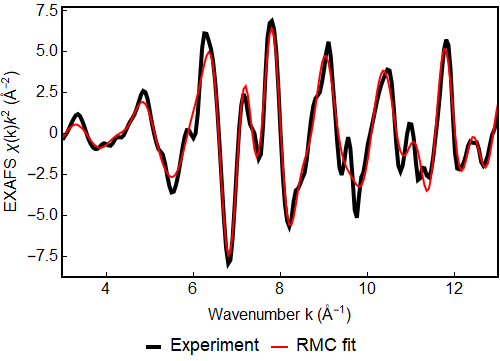

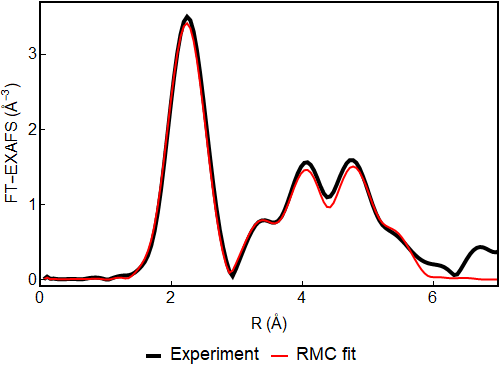

Comparison of experimental data with RMC fit results

Residual = 0.1 (R-factor = 0.01 )

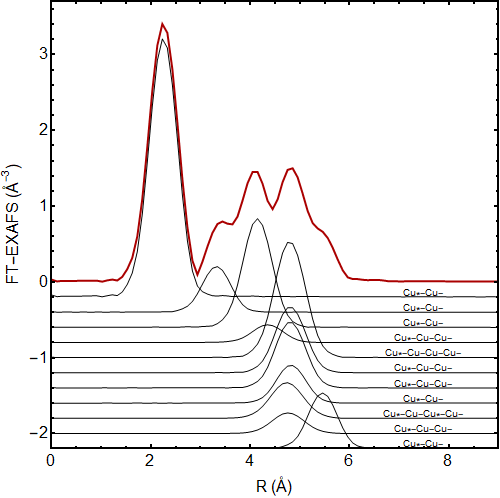

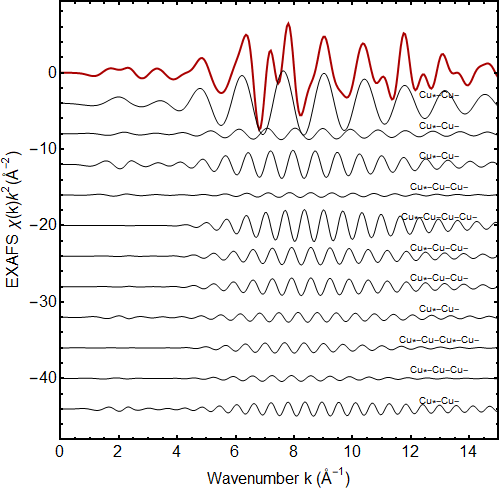

Contributions of the most important paths

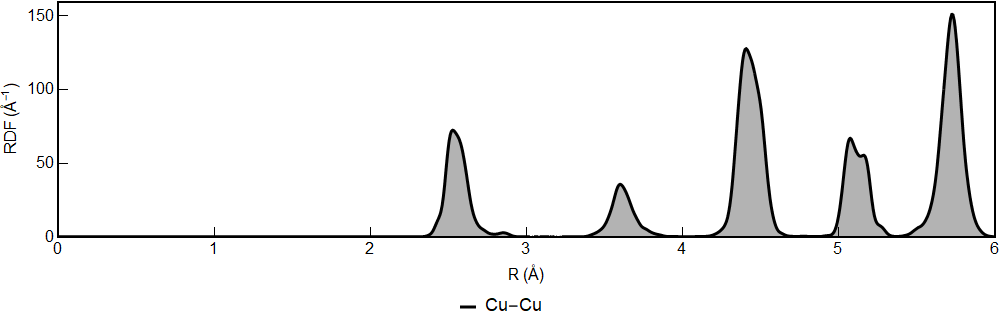

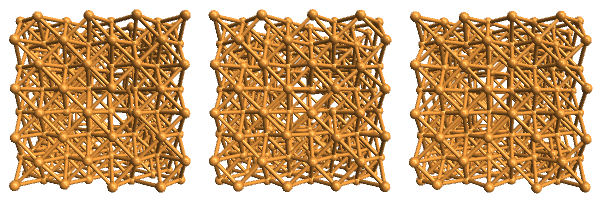

Structure

""
Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Cu-Cu 12. 2.558 0.0058
Cu-Cu 6. 3.616 0.006
Cu-Cu 24. 4.429 0.0048
Cu-Cu 12. 5.113 0.0046
Cu-Cu 24. 5.717 0.0051
