ReO3, Re L3-edge

Cite as: Timoshenko et al, J.Phys.:Condens.Matter 26 (2014) 055401
Download all input files
Download all output files

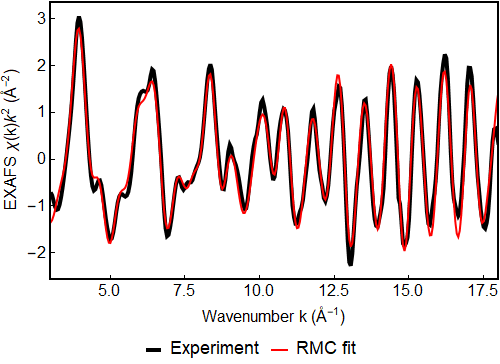

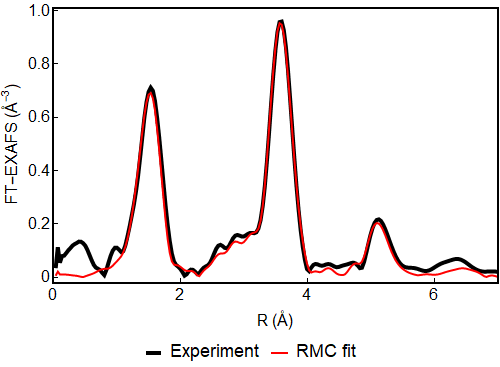

Comparison of experimental data with RMC fit results

Residual = 0.114 (R-factor = 0.013 )

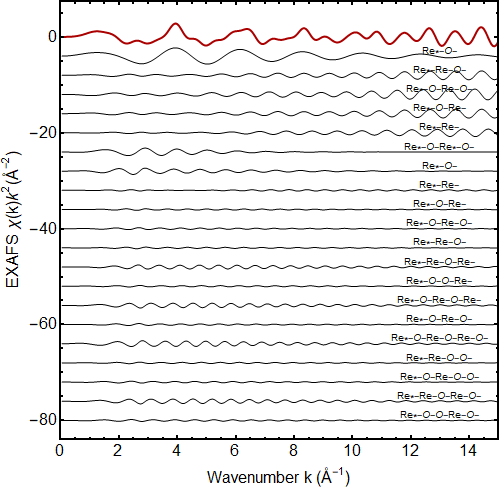

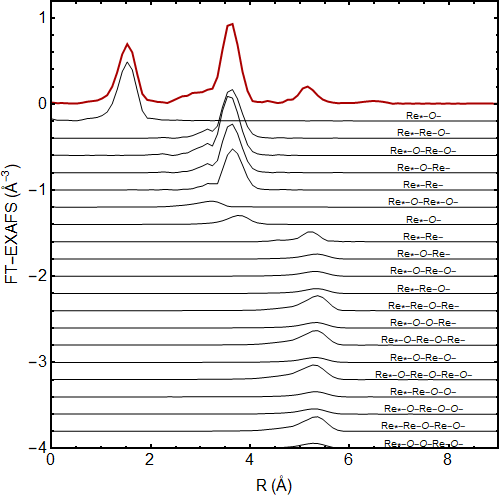

Contributions of the most important paths

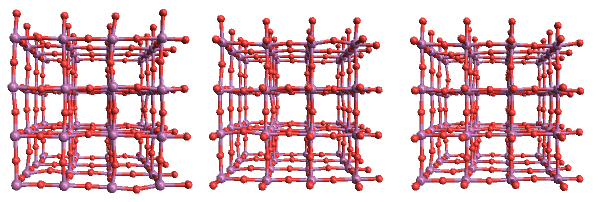

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Re-O 6. 1.88 0.0061
Re-Re 6. 3.749 0.0067
Re-O 24. 4.192 0.013
Re-Re 12. 5.301 0.0083
Re-O 30. 5.623 0.0126
